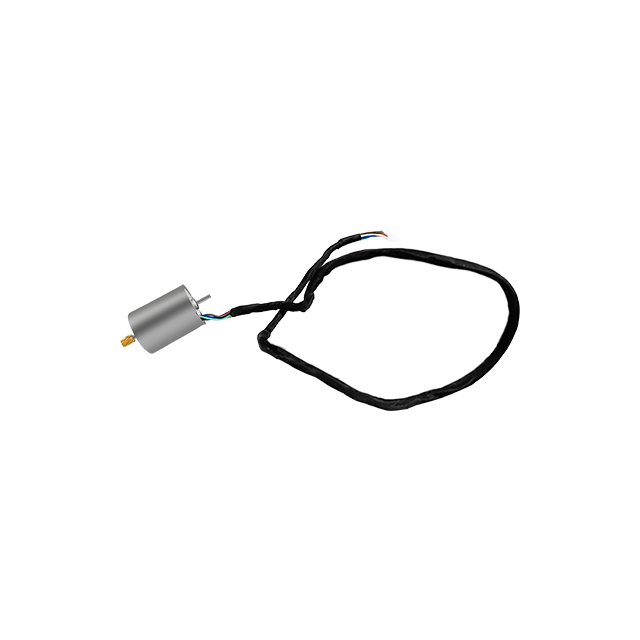

LD-EI2430

LD-EI2430

  • Automobiles Products

Technical Parameter

MODEL
  • LD-EI2430
VOLTAGE
  • (V/DC)
  • 12
NO LOAD
  • SPEED
  • (rpm)
  • 4150
  • CURRENT
  • (A)
  • 0 .1
RATED LOAD
  • SPEED
  • (rpm)
  • 2650
  • CURRENT
  • (A)
  • 0.8
  • TORQUE
  • (mNm)
  • 15.7
  • OUTPUT
  • (W)
  • 4.36
  • EFFICI ENCY
  • 45.38%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 3397
  • CURRENT
  • (A)
  • 0.451
  • TORQUE
  • (mNm)
  • 7.88
  • OUTPUT
  • W
  • 2.80
  • EFFICI ENCY
  • 51.76%
STALL
  • TORQUE
  • mNm
  • 43.44
  • CURRENT
  • A
  • 2.04

Cad drawings

LD-EI2430
